Written By: Bill Handlos, PE, Director of Presto Geosystems
Geocells (cellular confinement) offer a more effective and practical 3D design solution to load support challenges than multilayered 2D geogrid efforts. Geocells transfer applied loads instantaneously, delivering practical soil stabilization in a product that is fast and easy to install.
How do geogrids work?
Geogrids rely on rutting, displacement and lateral movement of the road material to activate the load support reaction of the product. As shown below, failure of the driving surface must occur before the geogrid reacts. As a result, rutting and soil displacement is a prerequisite reality to the system. Since the geogrid is two-dimensional, material not located directly within the plane occupied by the geogrid is free to move, shift and displace.
It is essential that geogrids are placed in a flat or a pre-tensioned manner—but that is not practical in a construction environment. It is common to see geogrids unrolled over a prepared grade with an undulating surface. As aggregate is placed over the top of the geogrid, the material kinks and waves, further warping the 2D plane. The geogrid is rarely pulled tight during installation which does not allow full tension under load.
Geogrids are difficult to install in soft subgrades
In cases where subgrade is particularly poor, over-saturated, or already damaged by rutting, geogrids are even more difficult to place flat and tight as recommended. Soft subbase does not support medium or heavy construction equipment to place and spread the base layer over the geogrid without deforming the geogrid even further. The overall deformation creates an uneven geogrid layer that is poorly suited to function as intended.
Often, geogrid manufacturers recommend two, or even three layers of geogrids to create a stiffened aggregate cross-section. This approach improves load support performance of the geogrids, but is time-intensive, as each layer must be unfurled, covered and compacted separately. Cost of installation and materials double and triple with the additional layers.
How do geocells work?
Geocells are 3D structures that utilize the cell hoop strength, passive earth pressures, and particle confinement to create a stiff mattress layer that resists wheel loads immediately upon impact and without the partial driving surface failure required by geogrids. Load induced stresses are transferred from the infill particles to the cell wall and counteracted by hoop resistance and passive resistance of adjacent cells.
Workers expand geocells over the subbase quickly and easily and it is not critical that the geocells be pre-tensioned or placed perfectly on-grade. Loaders, bulldozers and bobcats are employed to fill the geocells. Loaded dump trucks can back over ‘just-filled’ geocells with no damage to the product and no effect on the performance of the material.
Unlike geogrids, geocells are effective with a wide variety of infill, and are not limited to the high quality aggregate required for geogrids. Sand, fine aggregate, gravel or breaker run, all see their properties enhanced by the strength of high density polyethylene (HDPE) geocells. The ability to use on-site infill or locally available materials can yield increased savings to the project.

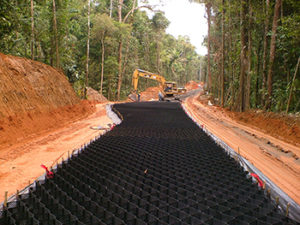

Geocells are ideal for installation over soft soils
No equipment is necessary to expand geocell sections, so they can be placed over the softest of subbases and low-pressure equipment is not required to infill the cells. Simply back up full-size loaded dump trucks, empty the payload and spread the granular material in and over the geocell.
Geocells Proven Performance
Geocells have been successfully improving road life of paved and unpaved highways, access roads and work platforms for 40 years. Since the United States Army Corps of Engineers (USACE) co-developed the technology in partnership with Presto Products, thousands of GEOWEB® geocell load support projects have saved millions of dollars in construction costs and provided three-dimensional stabilization simply not available with the use of traditional geogrids. Browse our project case studies, photos and videos here.
Request an on-site technical presentation to learn more about the GEOWEB® Geocell Confinement System.
